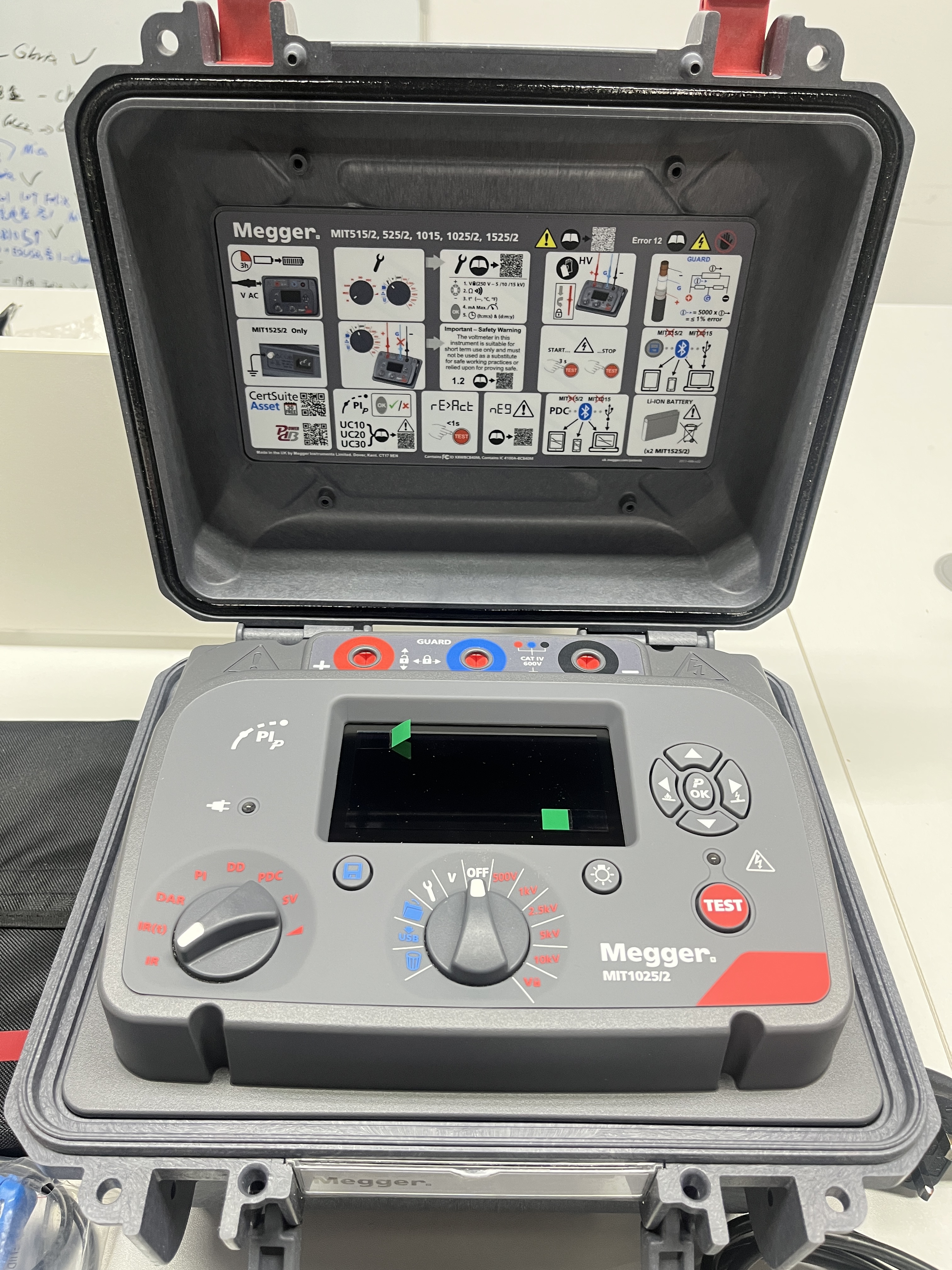

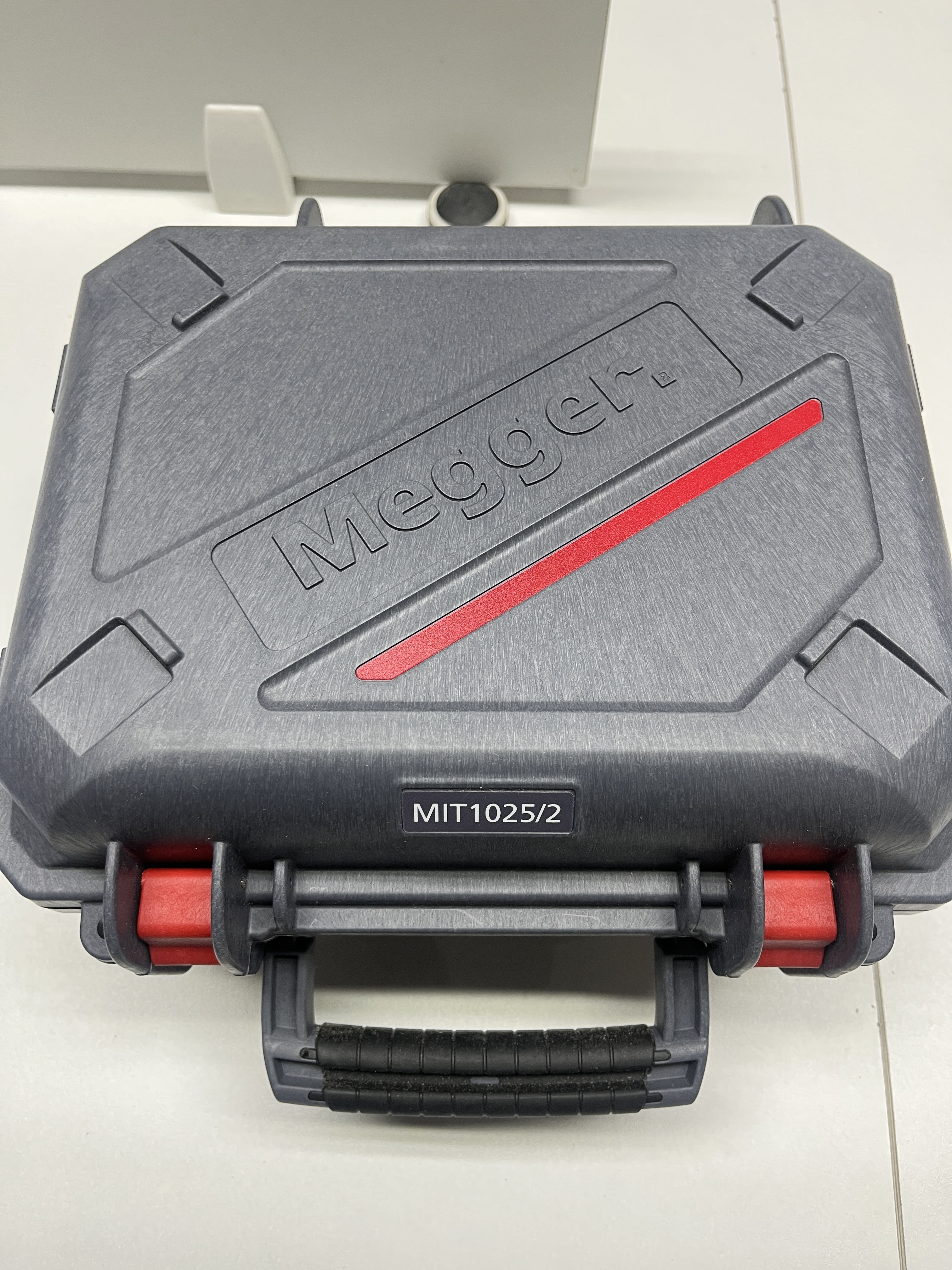

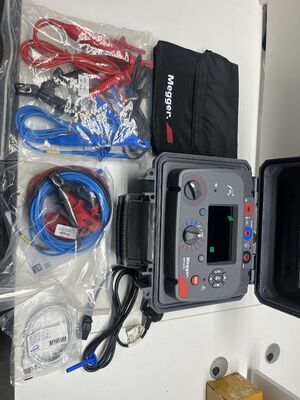

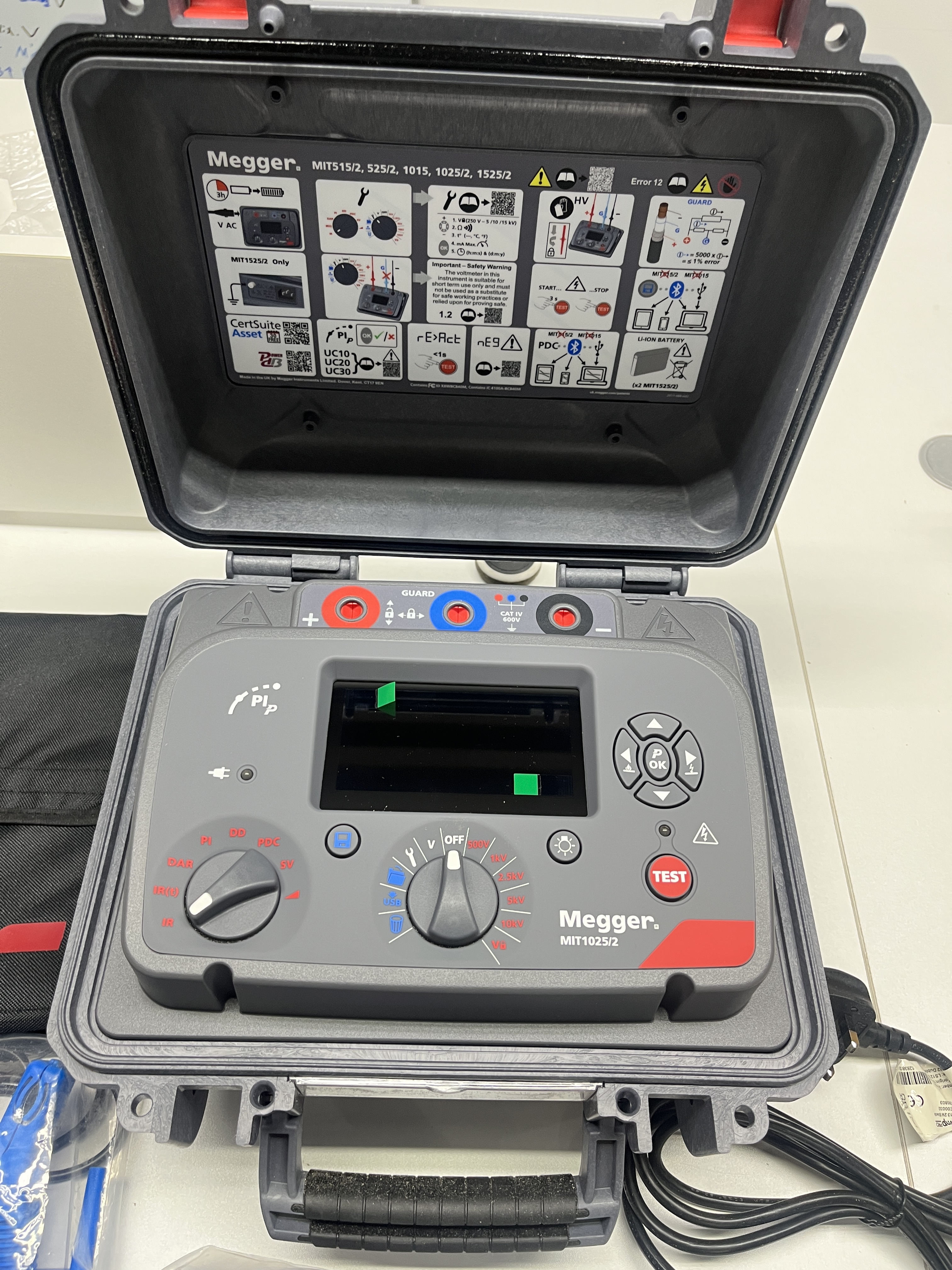

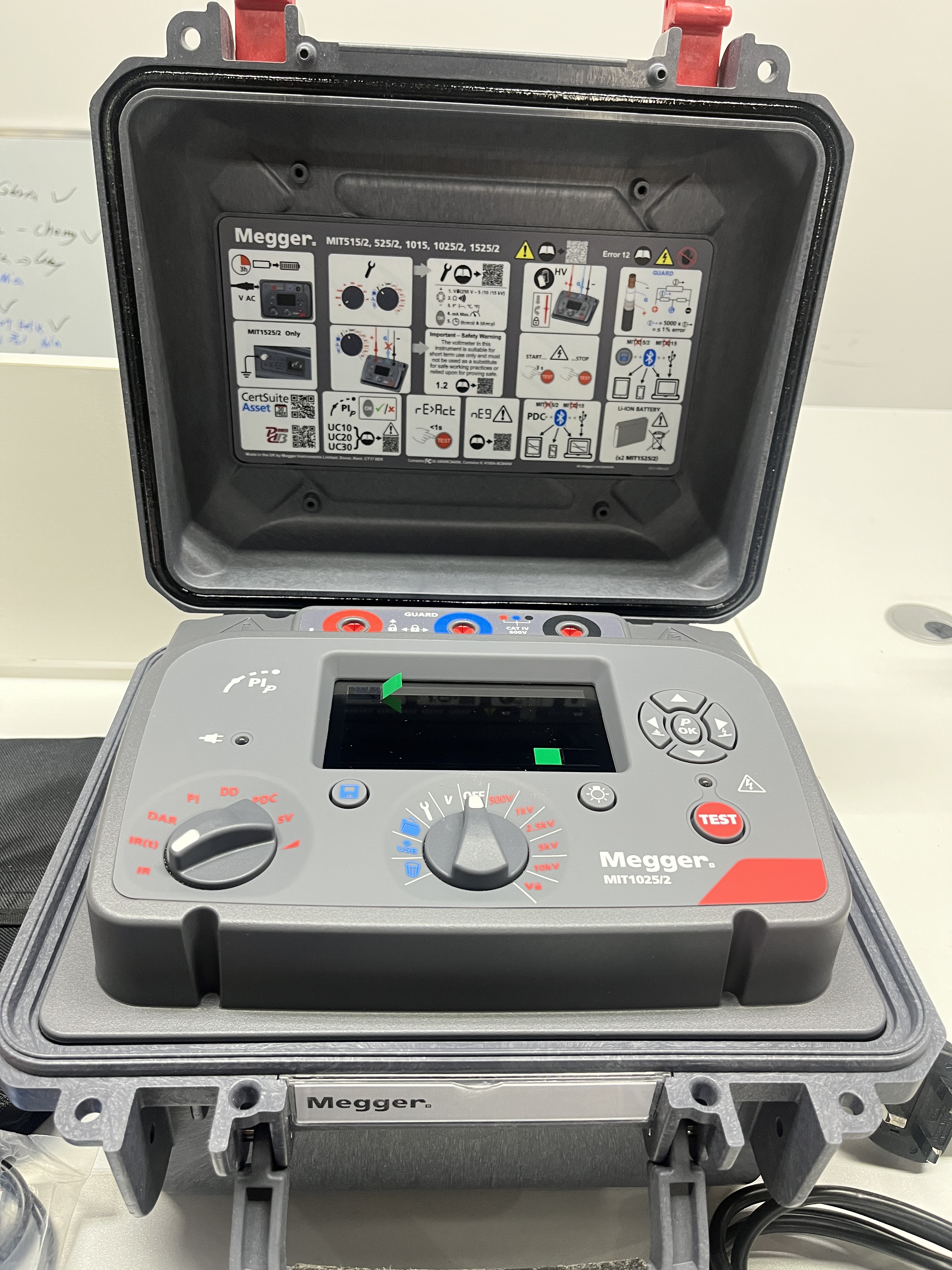

For Megger MIT1025/2 Megohmmeter 10KV Insulation Resistance Tester

0.01 nA to 5 mA Current measurement accuracy (23°C) ±5% ±0.2 nA at all voltages Interference rejection S1-5521 mA per 250 V up to a maximum of 2 mA S1-1052 1 mA per 600 V up to a maximum of 2 mA Timer range Up to 99 minutes and 59 seconds from start of test 15 second minimum setting for test voltage ≥1000 V 30 second minimum setting for test voltage <1000 V Memory capacity 32kB Test regimes Auto IR, PI, DAR, SV and DD. Interface RS232 and USB Data store Voltage, test time, leakage current, resistance, PI, DAR, DD, capacitance and time constant Real time output Serial, once per second of test voltage, current and resistance Operating temperature-10°C to 50°C Storage temperature-25°C to 65°C Ingress protection (lid closed) IP65 Humidity 90% RH non-condensing at 40°C Safety Meets the requirements of EN61010-1:2001 CATIII 300 V EMC Meets the requirements of EN61326-1:1998 for use in heavy industrial areas. Dimensions 305 x 194 x 360 mm (12.7 x 6 x 14.2 inches) Weight 7.1 kg (16lb) approx. S1-552 and S1-1052 5 kV and 10 kV Insulation Resistance Testers Item (Qty) Order Code 5 kV insulation resistance tester S1-552 10 kV insulation resistance tester S1-1052 Included Accessories 3m lead set 8101-181 RS232 cable 25955-025 USB cable 25970-041 User guide on CD-ROM 6172-988 Item (Qty) Order Code Optional Accessories 3 m lead set with straight jaw clamps 6220-797 15 m lead set 8101-183 3 m lead set 6 kV insulated clips 6220-820 3 m lead set 1 kV insulated clips 6220-822 3 m lead set 10 kV insulated clips 6220-811 3 m screened lead set (5 kV) 6220-835 3 m screened lead set (10 kV) 6220-834 15 m screened lead set (5 kV) 6311-080 15 m screened lead set (10 kV) 6220-83
