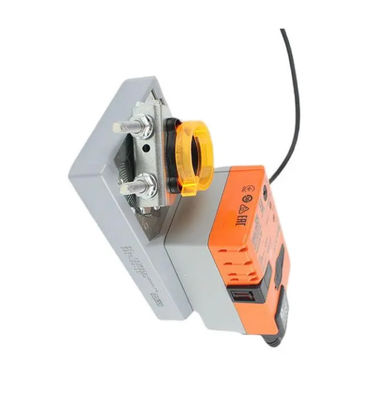

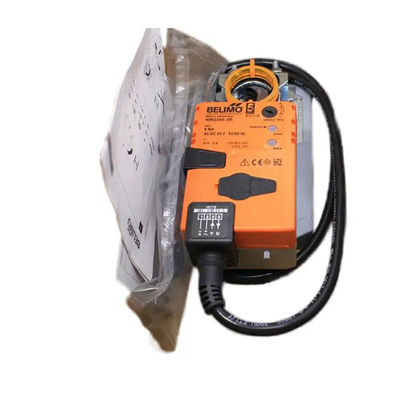

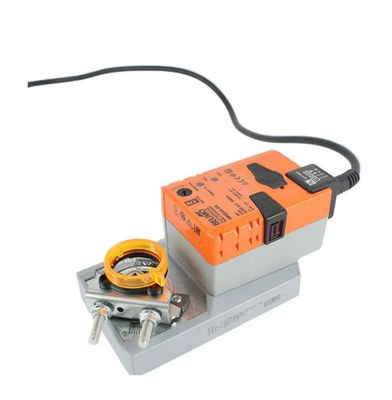

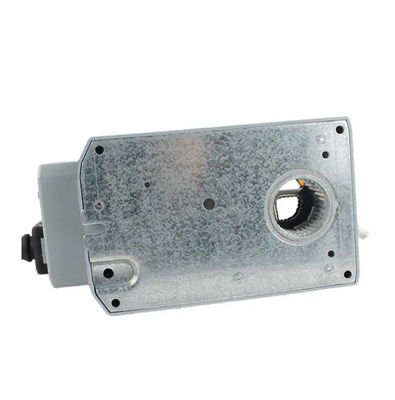

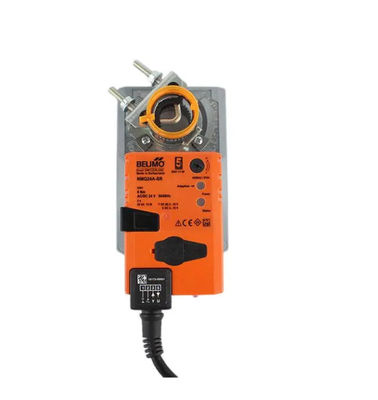

BELIMO Orignal NMQ24A-SR Very Fast Running Rotary Actuator 8 Nm AC/DC 24 V 4 s IP54 HVAC System Manual Override in Stock

Electrical data Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V Power consumption in operation 13 W Power consumption in rest position 2 W Power consumption for wire sizing 23 VA Inrush current (Imax) 20.0 A @ 5 ms Connection supply / control Cable 1 m, 4x 0.75 mm² Parallel operation Yes (note the performance data) Functional data Torque motor 8 Nm Operating range Y 2...10 V Input impedance 100 kΩ Position feedback U 2...10 V Position feedback U note Max. 0.5 mA Position accuracy ±5% Direction of motion motor selectable with switch 0/1 Direction of motion note Y = 0 V: At switch position 0 (ccw rotation) / 1 (cw rotation) Manual override with push-button, can be locked Angle of rotation Max. 95° Angle of rotation note can be limited on both sides with adjustable mechanical end stops Minimum angle of rotation Min. 30° Running time motor 4 s / 90° Sound power level, motor 56 dB(A) Adaptation setting range manual (automatic on first power-up) Mechanical interface Universal shaft clamp 8...26.7 mm Position indication Mechanical, pluggable Safety data Protection class IEC/EN III, Safety Extra-Low Voltage (SELV) Power source UL Class 2 Supply Degree of protection IEC/EN IP54 Degree of protection NEMA/UL NEMA 2 Housing UL Enclosure Type 2
