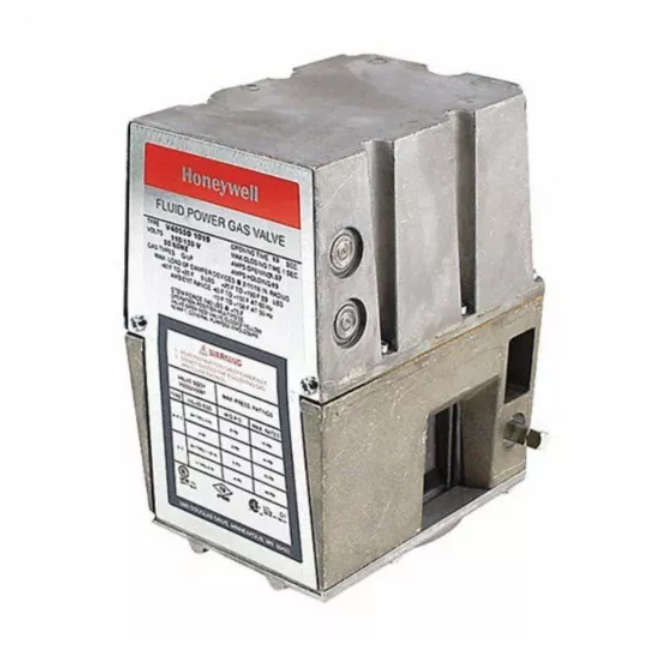

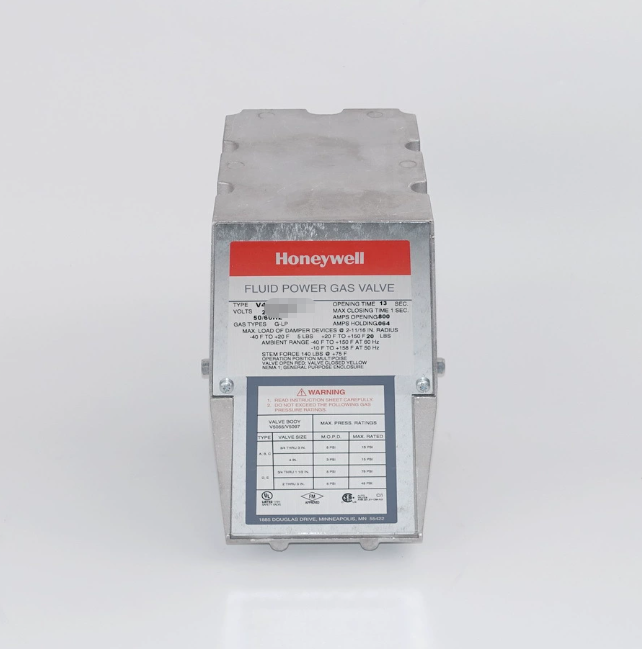

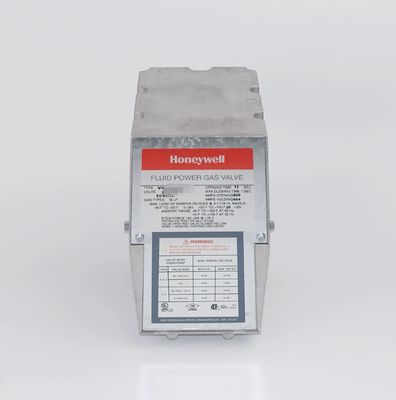

Honeywell V4055A1007 Fluid Power Gas Valve Actuator

Honeywell V4055A1007 Fluid Power Gas Valve Actuator

V5055 Industrial Gas Valves and V4055 Fluid Power Actuators for Safety Shut-off service. The V4055 actuator can also be paired with the V5097 series gas valves

Features & Benefits:
Use with natural or LP gases
Mount directly in gas supply line
Include 1/4 in. NPT upstream and downstream taps and plug
4 in. models have only flanged connections
V5055 normally closed valves are rated for final shutoff service safety shutoff
V5055A, C, E Valves are for On-Off service
V5055B Valve has a characterized guide and in combination with the V4055 and V4062 Fluid Power Actuators, provides slow-opening, hi-lo-off, and modulating functions respectively
V5055C, E, F Valves have a double seal and are used with V4055D, E Actuators to provide proof-of-closure switch and valve seal overtravel interlock
V5055E, F Valves are for high pressure applications
Operating Temperature Range: -40°F to +150°F (-40°C to +65°C)
Approvals, Underwriters Laboratories Inc.: When used with V4055A, B, D, E, V4062: Listed, File No. MH1639 Guide No. YIOZ
Approvals, CSA: When used with V4055, V4062, and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada Approvals, Swiss RE: When used with the V4055A, G: Approved, Report Nos. 20698, 20835, 21172, and 24061 Used With: V4055; V4062
