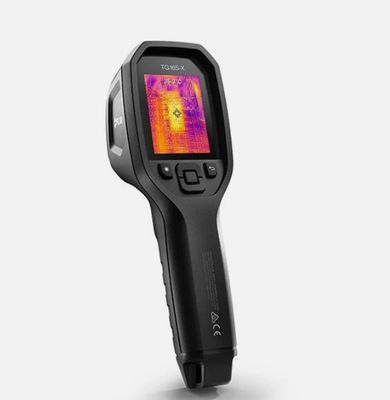

FLIR MSX TG165-X Thermal Imaging Camera -25°C ~ 300°C 80×60 Pixel

Contactez-moi pour des aperçus gratuits et des bons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xRésolution | 80 × 60 pixels | Sensibilité thermique_NETD | <70 mK |
---|---|---|---|
Champ de vision [FOV] | 71° × 56° | Pas du détecteur | 17 µm |
Résolution d'affichage | 320 × 240 pixels | MOQ | 1pc |
The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
Camera software update | Using USB cable or SD card |
---|---|
Color palettes | Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava |
Detector Pitch | 17 µm |
Digital image enhancement | No |
Display resolution | 320 × 240 pixels |
Field of view [FOV] | 71° × 56°, adapts to the IR lens |
Focal Plane Array [FPA]_Spectral range | Uncooled microbolometer/7.5–14 µm |
Focus | Fixed |
Gallery | Yes |
Image Frequency | 8.7 Hz |
Image Modes | MSX® (Multi Spectral Dynamic Imaging), visual |
IR Resolution | 80 × 60 pixels |
Laser | Class 1 |
Minimum Focus Distance | 0.3 m (0.98 ft) |
Minimum Measurement Distance | 0.26 m (0.85 ft.) |
Resolution | 2 MP (1600 × 1200 pixels) |
Thermal Sensitivity_NETD | <70 mK |
